Product Name: Fine Bubble Generator

Micro Oxygen Ozone Nano Bubble Generator

Nano Bubble Generator

Fine Bubble Generator

Bubble Generator

Product description: Micro Fine Bubble Generator

Product details


Micro Oxygen Ozone Fine Bubble Generator



Introduction


Saintek Nano bubble generators transfer any gas into any liquid with near perfect efficiency. The system does this via a unique two phase gas transfer system that both saturates a liquid with both dissolved gas and trillions of Nano bubbles in the 50-200 nm range providing greater than 200x the interfacial surface area compared to micro bubbles. Nano bubble aeration has a distinct advantage over traditional aeration since the Nano bubbles remain in suspension for prolonged periods of time, creating a reserve of available gas in the liquid.  This low turbulent, gas diffusion process results in the most efficient method to enhance the performance and functionality of any type of liquid.


APPLICATIONS

Wastewater Treatment

MBRs / SBRs/ DAFs

Aquaculture

Hydroponics

Irrigation

Sterilization

Available in a variety of configurations, the Saintek Generators were designed for durable operation, easy installation and straightforward control. The unit has no moving parts and customers can select between open and enclosed pump configurations, making a truly plug-and-play system.

FEATURES & BENEFITS

> 90% standard oxygen transfer efficiency (“SOTE”)

50~ 200nm in size

Smallest size bubbles creating 200x the inter-facial surface area compared to micro bubbles

Highest concentration of bubbles per cm3 ( >100M bubbles/cm3 )

Nano bubbles stay suspended in water after solution reaches saturation

Increases water’s capacity to hold a given gas

Low-turbulent gas diffusion

Reduces the density of water, therefore reducing friction


Advantage

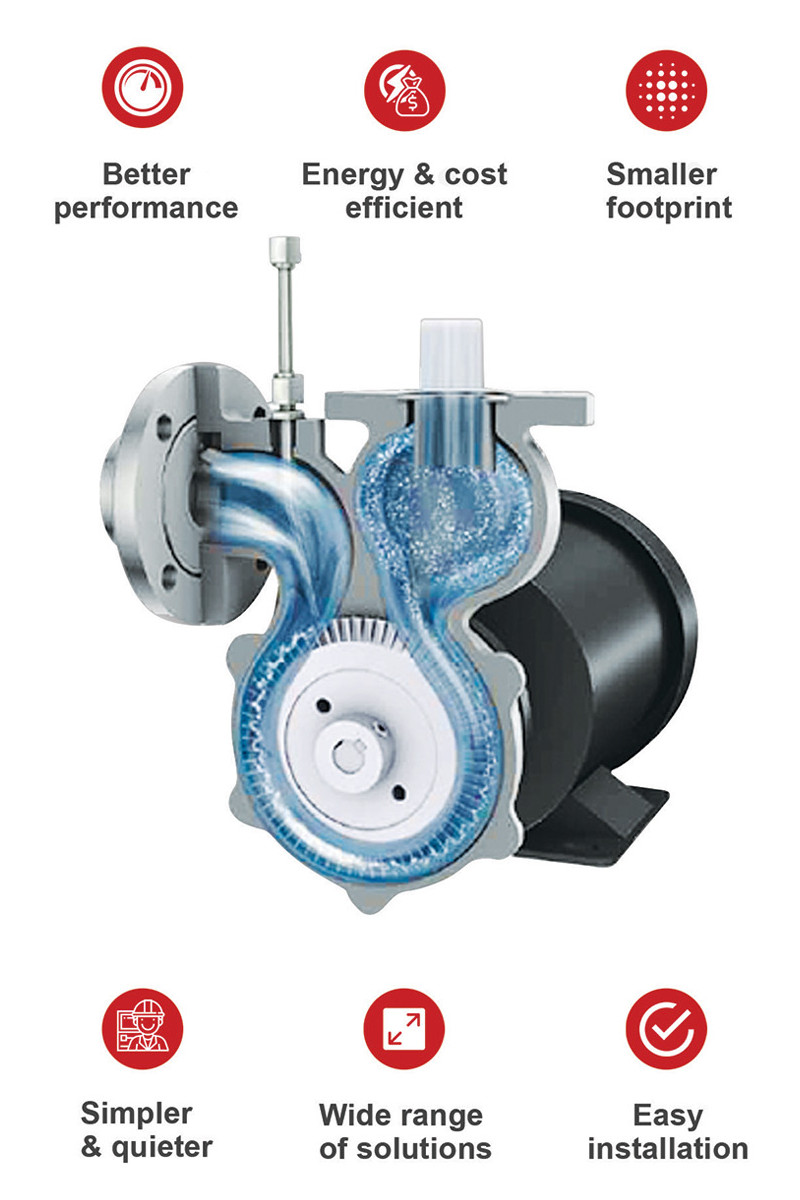

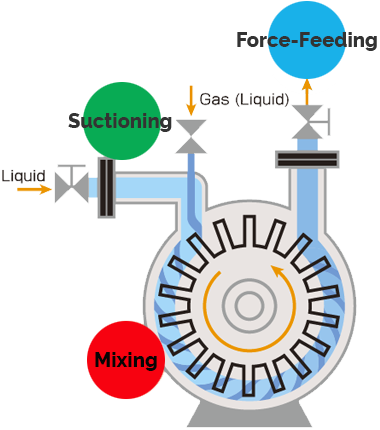

1. Using high-pressure rotary flow transient release technology, high density of micro Nano bubble, non-clogging, easy to maintain.

2. Functional bubble diameter of 200 nm ~ 50μm, saturated water can be quickly produced with good gas-liquid dissolving effect.

3. Stable performance, high efficiency, low noise.

4. Wide range of application, such as: waste water /gas treatment aquaculture, agricultural

Irrigation, bath and so on.



Technical Parameters





STNB-001

STNB-002

STNB-006

STNB-012

Water Inflow (m3/h)

1

2

6

12

Voltage (V)

220/380

220/380

380

380

Power (KW)

0.5

1.1

3

6

Size (mm)

660*530*800

660*530*800

850*550*850

860*560*850

Working Environment (ºC)

0-100ºC

0-100ºC

0-100ºC

0-100ºC

Working Capacity (cubic water)

90

300

1200

2200

Bubble Diameter (nm-μm)

80nm-20μm

80nm-20μm

80nm-20μm

80nm-20μm

Gas-liquid Mixing Proportion

1:8-1:12

1:8-1:12

1:8-1:12

1:8-1:12

Gas-liquid Dissolving Rate

>95%

>95%

>95%

>95%
